设置ABB变频 VFD与Allen-Bradley PLC通信

·inthisvideo，we'regonnashowyouhowtouseanabbvfdwithanallenbradleyplc.

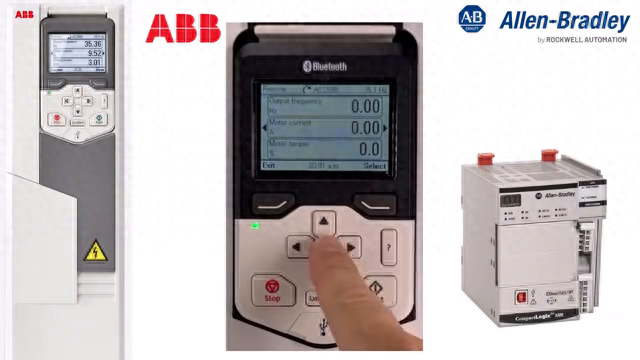

·inthisdemonstration，we'regonnauseanacs580.

·youseeontheleftandacompactlogicsontheright.

·let'sgetstarted.

·thefirstthingwe'regonnadoonthedriveisclickmenu.

·gotoprimarysettings.

·andthenwe'regonnascrolldowntolookforfieldbus.

·wanttodothat，we'llverifythefbaisselected.

·andthengodowncommunicationsetup.

·andgotoaprotocol.

·chooseethernetipatthebottomofthelist.

·save.

·thenverifytheprofile'sodva.

·thenwe'llcomedowntotheipaddress.

·itwilltypeintheipaddress.

·asneededforyourparticularnetwork.

·afterweentertheipaddresswewillclicksave.

·andthenscrolldowntoapplysettingstofieldbusmodule.

·we'lldotheseveraltimesthroughouttheprocesstoupdateallthesettingswe'rechanging.

·we'llthenclickbackanddowntodrivecontrolsetup.

·we'llfirstchoosefieldbuscontrolword.

·andthenfieldbusreference.

·andthenscrolldowntofrequency.

·onethousandwe'llchooseonethousandhere.

·tomakeaoneforonescaling.

·andthencomedowntothebottom.

·andapplysettingstofieldbusmodule.

·again.

·thenwe'llgoback.

·comedowntotheverybottomandapplysettingsonemoretime.

·clickback.

·we'regonnagoallthewaytothemainmenu.

·verifywe'reinremoteandwe'rereadytosetuptheplc.

·ontheplc.

·weneedtosetuptheethernetcommunications.

·tothedriveundertheethernetsection.

·sowe'llgodownandright.

·clickonethernet.

·andchoosenewmodule.

·we'llthenclickinthesearchbar.

·andstarttypingingeneric.

·andthenwe'llcomedownandselectgenericethernetmodule.

·clickcreate.

·thenwe'llgiveitaname.

·inthiscasewe'llcallitacs580.

·thenwe'llcomedowntocomformat.

·we'regonnachangethattointdataint.

·thenwe'llcomedowntotheipaddress.

·typingtheipaddressthatwegaveitthedrivepre.

·obviously.

·afterthatwe'lljumpovertoassemblyinstance.

·wewanttomaketheinputinstance171.

·forwiththesizeof12.

·andthenoutputinstance121.

·withthesizeof12.

·configurationwillbeaone.

·andthenclickok.

·andthenok.

·thenwe'lldownloadthistotheplc.

·we'llthengouptocontrollertags.

·andlookforthenamethatwegavethevfdacs580.

·expandoutthecoalandisection.

·fortheinputsection.

·thengodownandexpandoutthecoalandooroutputsection.

·thefirstwordoftheoutputoutputsectionisthecontrolwordthesquarezerothere.

·thesecondwordsquareonerepresentsthecommandedspeed.

·sowe'regoingtostartoffbygivenacommandedspeedof900.

·whichwillrepresenthalfspeedforthisparticularsetup.

·theydon'tcomeupandgiveitoneforthestart.

·you'llseethedrivestartonthekeypadtotherightaswell.

·asupaboveintheinputsection.

·you'llseetheactualspeedmovinguptowards900.

·andthat'showyousetupanabbvfdtalkingtoanallenbradleyplc.

thanks。
